Requires the Google Home app and a Google Account – not compatible with the Nest app or the home.nest.com site.
Voice assistant
Voice control works with Alexa or Google Assistant.
Dimensions and weight
Nest Doorbell (wired) · Width: 1.7 in (42 mm) Depth: 1.1 in (28 mm) Height: 5.2 in (131 mm) Weight: 4.9 oz (140 g) · Nest Doorbell (battery) · Width: 1.8 in (46 mm) Depth: 0.95 in (24.1 mm) Height: 6.3 in (160 mm) Weight: 7.3 oz (206 g)
Colors

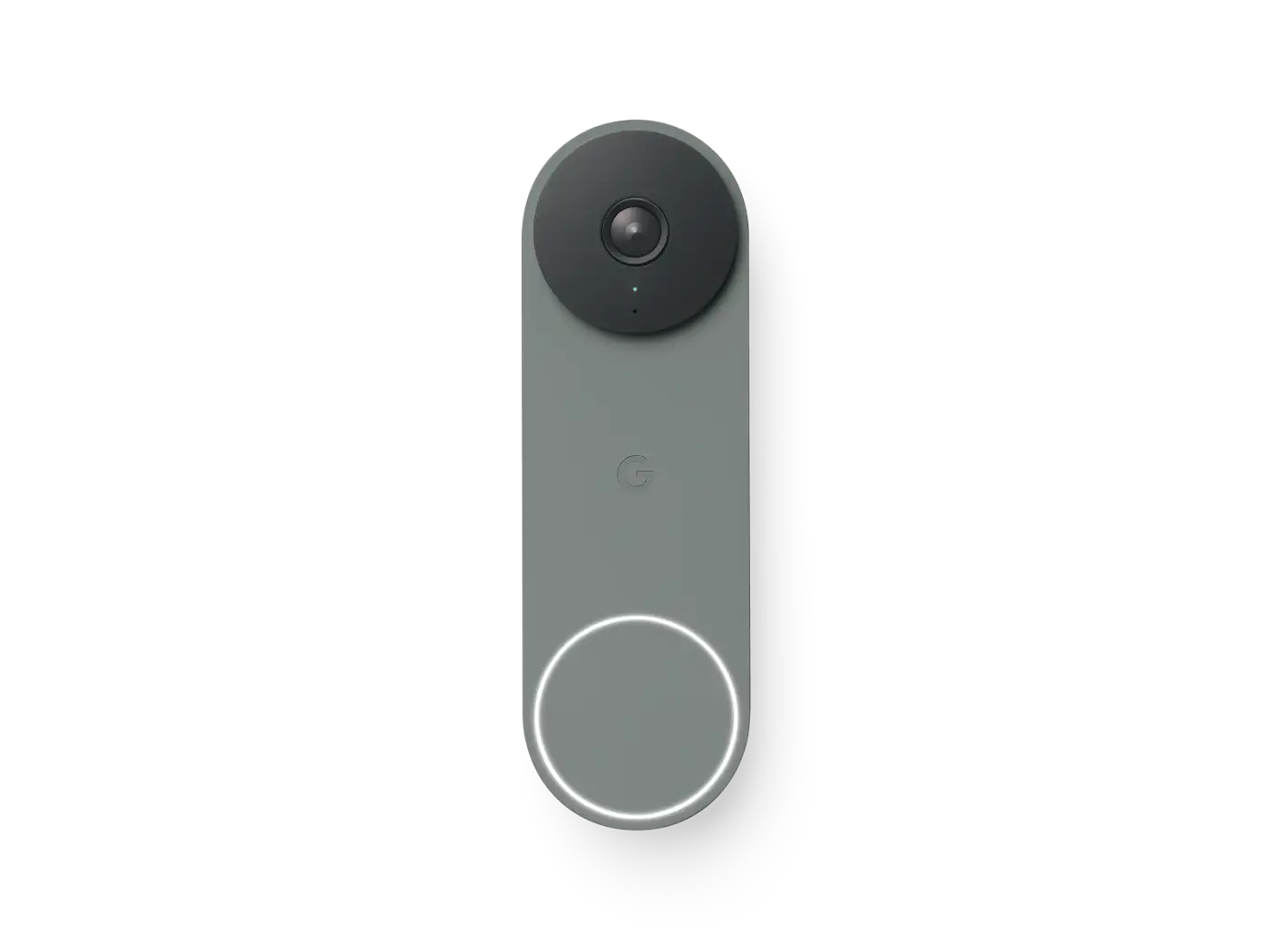

Snow • Linen • Ivy • Ash
Camera
⅓ inch, 1.3-megapixel color sensor 6x digital zoom 3:4 aspect ratio
Field of view
145° diagonal
Video
HD, 960 x 1280 pixels, up to 30 FPS 24/7 live view Night vision HDR H.264 encoding
Video history
Nest Doorbell (wired) · Includes up to 3 hours of event video history. Captures and stores video clips of activity within the past 3 hours. Captures and stores up to 30 days of event video history with a Nest Aware subscription (sold separately), or up to 60 days with Nest Aware Plus. Continuous video recording (up to 10 days of 24/7 video history) requires a Nest Aware Plus subscription (sold separately). · Nest Doorbell (battery) · Includes up to 3 hours of event video history. Captures and stores video clips of activity within the past 3 hours. Captures and stores up to 30 days of event video history with a Nest Aware subscription (sold separately), or up to 60 days with Nest Aware Plus. Whether you choose battery or wired installation, the Nest Doorbell (battery) cannot continuously record 24/7 video history.
Audio
High-quality speaker and microphone Two-way audio with noise cancellation
Lights
White LED status light ring RGB LED status light
Sensors
Nest Doorbell (wired) · N/A · Nest Doorbell (battery) · PIR (motion and proximity sensor) Magnetometer
Night vision
Nest Doorbell (wired) · See up to 10 feet away Ten 850 nm infrared LEDs with IR cut filter · Nest Doorbell (battery) · See up to 10 feet away Four 850 nm infrared LEDs with IR cut filter
Wireless
802.11a/b/g/n/ac (2.4 GHz and 5 GHz) Wi-Fi. WEP, WPA, WPA2, WPA3 encryption supported. Bluetooth Low Energy (BLE)
Security
On-device machine learning Secure boot Legally required software and security updates will be provided. See here for more. TLS/SSL with 128-bit AES
Power
Nest Doorbell (wired) · Must be connected to a 16–24VAC, 10VA, 50/60Hz doorbell transformer. For houses that don’t have existing doorbell wires or the right transformer, install the Indoor Power Adapter or purchase the Nest Doorbell (battery). Learn more. · Nest Doorbell (battery) · Built-in rechargeable Li-Ion battery, 6 Ah, 3.65V. Learn more at g.co/nest/camlife. Or use existing wiring for chime and recharging. Requires a 8–24VAC, 10VA, 50-60Hz transformer
Chime and compatibility
Nest Doorbell (wired) · Compatible with chimes rated to work with a 16–24VAC, 10VA doorbell transformer. When connected to a wired doorbell chime, the Nest Doorbell (wired) must be used with the chime connector included in the box. Wired doorbell chimes are not supported when the Nest Doorbell (wired) is powered by the optional Indoor Power Adapter. You can also get a notification on your phone and on your Google Assistant–enabled speakers and displays. The Nest Doorbell (wired) is not compatible with battery-powered wireless doorbell chimes. · Nest Doorbell (battery) · Nest Doorbell (battery) can send notifications to your phone and Google Assistant-enabled speakers and displays when someone presses the button. Your existing wired doorbell chime will not ring. If you want to hear your existing wired doorbell chime when someone presses your battery-powered doorbell, you have the option to connect your existing doorbell wires (8 to 24VAC, 10VA, 50/60Hz transformer).
Book a Pro for installation
Google now makes it simple to purchase your device with professional installation at check out. Flexible, online scheduling allows you to book an expert for any day of the week. Already purchased a Nest Doorbell? Book installation with OnTech Online or Call 1-883-ONTECH2.
Operating and charging temperatures
Nest Doorbell (wired) −20°C to 40°C (no charging temp required) · (Nest Doorbell (battery) −20°C to 40°C; charging temp to above 0°C
Weather resistance
IP54 weather resistant Relative humidity range: 20% to 85%
Sustainability
Nest Doorbell (wired) · The Nest Doorbell (wired) and chime connector are made with approximately 43% recycled materials. · Nest Doorbell (battery) · The Nest Doorbell (battery) is sustainably designed with 45% recycled content across its plastic parts.
Languages
English, Danish, Dutch, Finnish, French, German, Italian, Japanese, Norweigen, Spanish, Swedish
Warranty
1-year limited warranty Nest Pro: 3-year limited warranty
